Np 2 pipe making machine

Name: Np 2 pipe making machine
Brand: M/S SHREYAS TRADES & ENGINEERING WORKS
Price: 2000000 INR
Availability: InStock

Price 2000000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Np 2 pipe making machine Specification

Motor Power
7.5 HP

Lifting Height
Up to 5 meters

Surface
Rust Resistant Painted

Lifting Speed
Adjustable up to 2 m/min

Product Type
Concrete Pipe Making Machine

General Use
Manufacturing NP2 Class RCC Pipes

Material
Steel

Type
Semi-Automatic

Capacity
Up to 36 pipes/day (varies by size)

Weight (kg)
4200 kg (Approx)

Computerized
No

Automatic
Semi-Automatic

Control System
Manual + PLC Control (Optional)

Cooling System
Water Cooled

Method
Centrifugal Spinning

Voltage
415 V AC, 3 Phase, 50 Hz

Dimension (L*W*H)
Approx. 3500 x 1200 x 1400 mm

Feature
Heavy Duty Body, High Production Output, Low Maintenance

Color
Blue/Grey

Power Consumption
Approx. 10 kW

Compressor Requirement
5 HP air compressor (Optional)

Pipe Class Supported
NP2 IS 458 Standard

Mould Changing Time
15-20 minutes

Production Area Needed
Minimum 60 sq.meter

Pipe Length Range
Up to 2.5 meters

Hydraulic Pressure
16-20 MPa (for pressing system)

Operator Requirement
2-3 Operators

Wheel Type
Heavy Duty Cast Iron

Vibration System
Integrated Lateral Vibrator (Optional)

Pipe Diameter Range
150 mm to 1200 mm

After Sales Service
Available

Np 2 pipe making machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Domestic Market
All India

About Np 2 pipe making machine

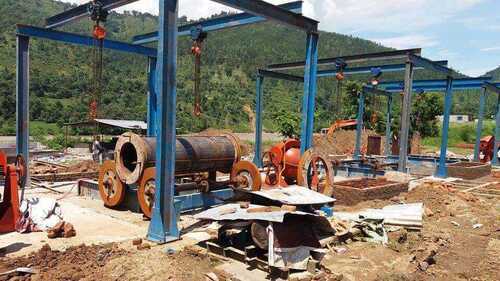

Np 2 pipe making machine is usually a machine that is used in the production of NP2 (Non-Pressure) class RCC (Reinforced Cement Concrete) pipes, which are usually used for stormwater drainage, sewerage, or irrigation purposes. They are semi-automatic or fully automatic, reducing labor costs and increasing production efficiency. These machines are known for features for ensuring uniformity in diameter, wall thickness, and strength of the pipes. They are made to produce a high number of pipes within a very short period. Thus, it is cost-effective. Np 2 pipe making machine produces pipes in various sizes and lengths. Depending on the requirements of a project, they produce different lengths.

Efficient Pipe Production for Varied Applications

This machine stands out for its versatility, producing up to 36 NP2 Class RCC pipes daily, varying according to pipe size. It supports a comprehensive range of pipe diameters and lengths, which allows users to cater to diverse infrastructure and construction requirements. The centrifugal spinning method ensures optimal pipe compaction and strength, guaranteeing longevity and reliability in end products.

User-Friendly Operation and Maintenance

Operating the NP2 pipe making machine is convenient, requiring just 2-3 operators. Mold changeover is swift, taking only 15 to 20 minutes, which reduces downtime and enhances productivity. The system combines manual with optional PLC controls, catering to different operator skill levels, while the heavy-duty build and rust-resistant finish reduce the frequency and cost of maintenance.

Designed for Industrial Environments

With a footprint of just 60 sq.meter and robust steel construction, this machine fits seamlessly into most factory spaces. It operates on standard three-phase power, and the optional air compressor and integrated vibrator can further improve output quality. After-sales service is readily available, ensuring that manufacturers and suppliers experience minimal operational interruptions.

FAQ's of Np 2 pipe making machine:

Q: How does the NP2 pipe making machine produce high-strength RCC pipes?

A: The machine uses a centrifugal spinning process combined with hydraulic pressing (16-20 MPa) to compact concrete and form robust pipes. The optional integrated lateral vibrator can further enhance compaction, resulting in high-strength NP2 Class RCC pipes as per IS 458 standards.

Q: What is the process for changing pipe moulds, and how long does it take?

A: Changing pipe moulds is a straightforward process, designed to be completed within 15-20 minutes. This rapid changeover allows for efficient switching between different pipe diameters or lengths, supporting flexible and continuous production schedules.

Q: When should the optional compressor and integrated vibrator be used?

A: The 5 HP air compressor and integrated lateral vibrator are suggested for enhancing concrete compaction, especially when manufacturing larger-diameter or thicker pipes. Utilizing these optional features improves the density and surface finish of the finished pipes.

Q: Where can this pipe making machine be installed?

A: The machine is suitable for installation in factories or production areas with at least 60 sq.meter of space. It is widely used by manufacturers, exporters, and suppliers across India due to its adaptable footprint and heavy-duty construction.

Q: What are the operator and energy requirements for daily operation?

A: The machine typically requires only 2-3 operators due to its semi-automatic design. It operates on 415 V AC, 3-phase, 50 Hz power supply and has a power consumption of approximately 10 kW, making it an energy-efficient choice for sustained operation.

Q: How does the machine's design contribute to its longevity and ease of use?

A: Constructed with a steel body and finished with rust-resistant paint, the machine is engineered for durability and endurance. Manual and optional PLC controls, adjustable lifting speed, and water-cooled motor further simplify operation and extend service life.

Q: What are the key benefits for manufacturers using this machine?

A: Manufacturers benefit from high production output, low maintenance, rapid mold changeovers, and adaptability for various pipe sizes. After-sales service and robust construction ensure reliable, long-term operation, making it a cost-effective solution for RCC pipe production.
