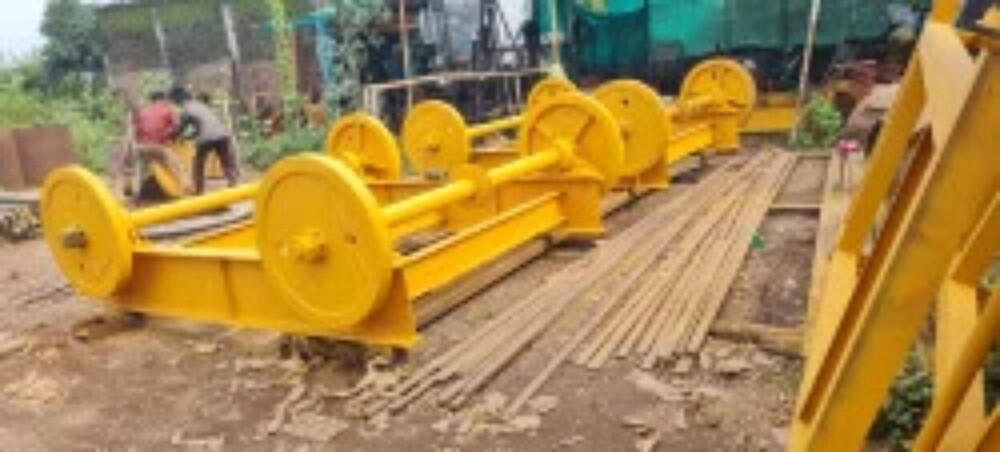

Reinforced Cement Concrete Pipe Machine

Price 2500000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Reinforced Cement Concrete Pipe Machine Specification

Motor Power
15 HP

Surface
Paint Coated

Lifting Height
Up to 3 meters

Lifting Speed
3-5 m/min

Product Type
Pipe Making Machine

General Use
Reinforced Cement Concrete Pipe Machine

Material
Mild Steel

Type
Semi-Automatic

Capacity
10 to 35 pipes per shift (varies by model)

Weight (kg)
Approx. 4500 kg

Computerized
No

Automatic
Semi-Automatic Operation

Control System
PLC/Manual Switch Panel

Cooling System
Water Cooled

Method
Vertical Vibration Casting/Compression

Voltage
380 V / 415 V, 3 Phase

Dimension (L*W*H)
4200 mm x 1600 mm x 2500 mm

Feature
High strength, Low maintenance, Efficient performance

Color
Standard Blue & White

Hydraulic Pressure
160 Bar

Cycle Time
8 to 15 minutes per pipe

Vibration System
Heavy-duty Pneumatic/Electric Vibrators

Pipe Class
NP2, NP3, NP4

Noise Level
Less than 75 dB

Operator Requirement
1-2 persons

Mould Diameter Range
150 mm to 1500 mm

Application
Culverts, Sewers, Drainage, Irrigation, Water Supply

Production Method
Spin and/or Vibration Casting Combined

Pipe Length Supported
1000 mm to 2500 mm

Power Consumption
Approx. 12-18 kW per hour

Reinforced Cement Concrete Pipe Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5 Units Per Month

Delivery Time
1 Week

Main Domestic Market
All India

About Reinforced Cement Concrete Pipe Machine

Rcc Pipe Making Machine is used for manufacturing reinforced concrete pipes, which are commonly used in stormwater drainage systems, sewage systems, and other infrastructure projects. This is suitable for producing various diameters of pipes with precise shapes and dimensions. They are built with robust materials to handle high production demands. These are designed to produce pipes that meet various international standards for strength, durability, and dimensional accuracy. RCC pipes produced are highly durable and resistant to weather, chemicals, and load stress. Rcc Pipe Making Machine allow for different sizes, diameters, and types of pipes.

Precision Engineering for Multi-Class R.C.C. Pipes

This machine is specifically engineered to produce R.C.C. pipes in NP2, NP3, and NP4 classes, catering to a diverse range of infrastructural applications. Using a combination of spin and vibration casting, the system enables the fabrication of high-quality pipes that meet the stringent requirements of various projects. With cycle times ranging from 8 to 15 minutes per pipe, the operation ensures efficient output and consistent results.

User-Friendly Semi-Automatic Operation

Featuring a semi-automatic operation controlled via PLC or manual switch panels, the Reinforced Cement Concrete Pipe Machine can be managed with only 1-2 operators. Its vertical vibration casting/compression method, supported by a heavy-duty vibration system, ensures uniform compaction and superior pipe strength. The machine also offers reliable lifting speed and robust construction, making it highly suitable for manufacturers seeking efficiency and ease of use.

Energy Efficient, Durable, and Low-Maintenance

Constructed from high-quality mild steel with an efficient water-cooled system, this machine offers energy consumption of around 12-18 kW per hour and maintains a noise level below 75 dB. The durable paint-coated exterior offers additional protection, ensuring longevity and minimal maintenance needs while maximizing productivity per shift. The reinforced structure supports a lifting height of up to 3 meters and can handle the demands of high-volume production environments.

FAQ's of Reinforced Cement Concrete Pipe Machine:

Q: How does the Reinforced Cement Concrete Pipe Machine operate?

A: The machine functions using a semi-automatic process that combines both spin and vibration casting methods. It is controlled via a PLC or manual switch panel, utilizing heavy-duty pneumatic or electric vibrators, enabling the production of high-quality pipes with minimal operator involvement.

Q: What pipe sizes and classes can this machine manufacture?

A: This machine is designed to manufacture R.C.C. pipes with mould diameters from 150 mm to 1500 mm and pipe lengths ranging from 1000 mm to 2500 mm. It supports pipe classes NP2, NP3, and NP4, making it suitable for various infrastructure and utility applications.

Q: Where can these pipes be used?

A: Pipes produced by this machine are widely used in culverts, sewers, irrigation systems, drainage, and water supply projects. The range of pipe classes and sizes allows them to meet the requirements of diverse civil construction sites.

Q: What is the typical production capacity per shift?

A: Depending on the selected model, the machine can produce between 10 to 35 pipes per shift. Cycle times per pipe range from 8 to 15 minutes, influenced by pipe size and class specifications.

Q: What are the benefits of using spin and vibration casting combined?

A: Combining spin and vibration casting methods ensures optimal compaction, uniform density, and higher strength for R.C.C. pipes. This process also minimizes defects and creates pipes with better durability, directly supporting high-performance applications.

Q: How many operators are required and how safe is the operation?

A: The machine is designed for user-friendly operation and requires only 1-2 operators. With its semi-automatic controls and safety features, it ensures both efficient production and operator safety throughout the process.

Q: What key features enhance this machine's durability and efficiency?

A: Built from robust mild steel, the machine features a water-cooled system, paint-coated surfaces, and reliable vibration mechanism, offering high strength, low maintenance, efficient performance, and safe operating noise levels below 75 dB.
